| PLASTIC INJECTION PART BASIC INFORMATION |
| Product Name | High Precision Mould |
| Product Material | ABS, PA, PA66+30GF, PBT, PC, POM, PP, PE, MA,PVC,TPE,TPU etc |
| Surface Requirement | Electroplate, Polishing, Painting, SandBlasting,Silk-screen, Laser Etching, Anodizing,Brushing,Smooth, |
| Plastic Part Resin | thermoplastic/Thermosetting |
| Tolerance Request | UP to (±0.005mm) |
| Lifetime | >300 Thousand Times |
| Part Size Range | 5-1000mm,or customized |
| Multi Injection | Single/Double/multi color |
| Design Software | Pro/E,UG,Catia,Woodwork,Moldflow,AutoCad |

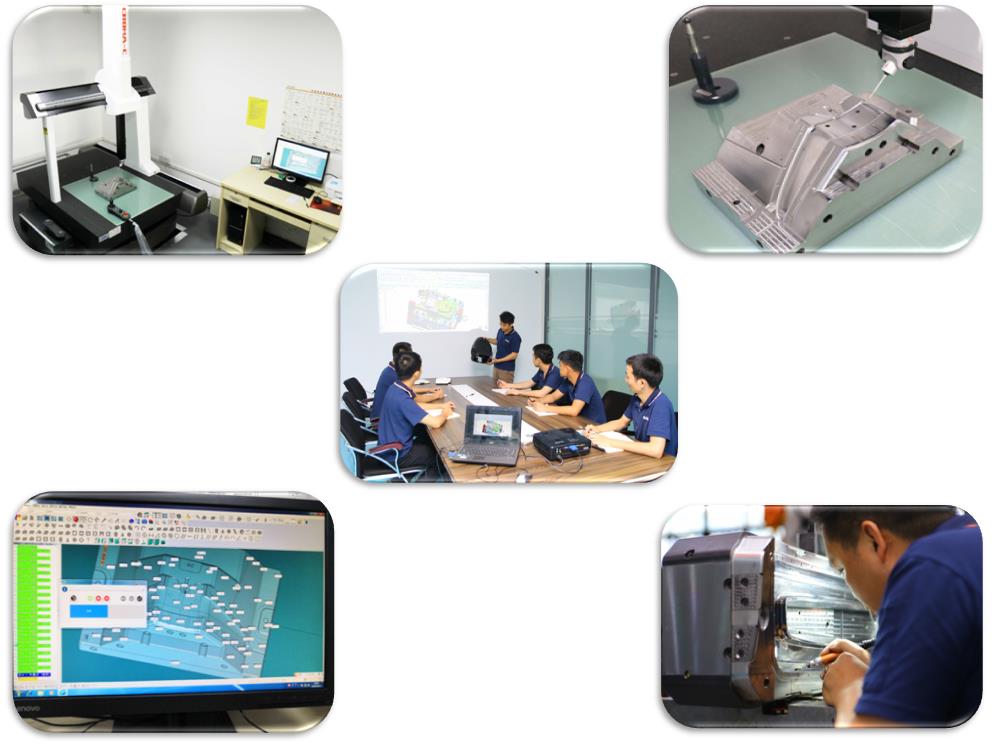

| Quality Assurance | Design Control, Steel Hardness Inspection Report, Steel Dimension Control Report, Mold Core and Cavity Dimension Inspection Report |
| PLASTIC INJECTION MOULD BASIC DESCRIPTION |
| Injection System | Hot /Cold Runner |
| Inserts(cavity and core) | H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or as your request |
| Mold Cavity | 1*1,1+1,1*2,1+1+1,etc |
| Gate type | Side gate,Sub gate,Pin point gate,Edge gate etc |
| Ejector System | Stripper plate,Lifter,Push bar,Ejection pin etc |
| Steel for Mould | P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc. |
| Steel Standard | FINKL,Assab,DAIDO,LKM,Buderus |
| Cooling | Baffles/Sprin Piple/3D printing water line |
| Lead time of first samples | Around 4~7weeks |
| Standard Parts/Cylinders | DME/HASCO/PROGRESSIVE/MISUMI/Parker/HP/Merkle |

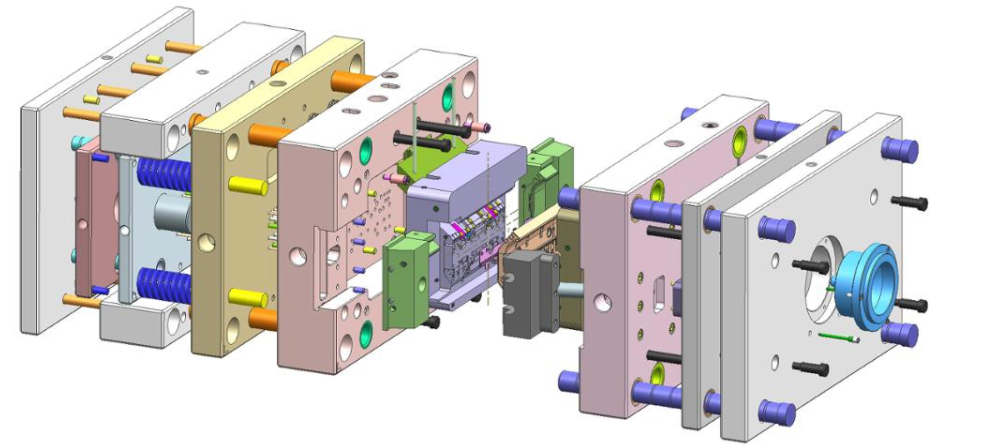

| Design Capability | DFM,Mould flow analysis,Product optimization, Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's idea |
| Documents / Reports Provided | Fully drawing,Weekly Processing Report, Steel Dimension report, Processing Report,Sample Dimension Report. |
Frequently Asked Questions
Q1: When can I get the price?
A1: Normally quotation would be submitted within 24 hours after receipt of your inquiry. If it's very urgent, please shoot us an email or give us a call, we will do it as priority.
Q2: How long is the lead time for mold?
A2: It depends on products' size and part structure. Our normal lead time is 25-35 days.
Q3: I have no 3D drawing, how should I start the new project?
A3: Samples or an idea or a sketch will be good too. My engineering department can design the 3D drawing on the new project.
Q4: Before shipment, how to make sure the products quality?
A4: We are specialized in high quality products. We have QC to inspect the products before each shipment. You can come to visit our factory or ask a third party for inspection. Or we can send you videos to show the production process.
Q5: How could I pay them?
A5: T/T, Paypal payment are acceptable. Just let us know which is convenient for you.
Q6: Can I get discounts?
A6: Yes, we give reasonable discounts for large orders, regular customers and frequent customers.
Q7: Which shipment way is available?
A7: a. FOB Shenzhen.
b. CIF to the nearest port in your country.
c. DDP or DDU by sea to your door.
d. Express (Alibaba express, DHL, UPS, FEDEX, TNT, EMS)
